Features
A SMARTER HOME STARTS WITH THE LG THINQ® APP.
The ThinQ® app offers control and convenience for smart LG appliances to help you simplify life. Manage and monitor your range remotely, send it cooking instructions with ThinQ® Recipe or scan-to-cook*, connect with Google or Alexa voice assistants, and access Smart Diagnosis, customer support, and much more.
SMOOTHTOUCH - SLEEK, STYLISH CONTROLS
The intuitive SmoothTouch® glass controls deliver sleek style and easy operation, with just a touch of your finger. Plus, the smooth surface easily wipes clean for a design that is as practical as it is stylish.

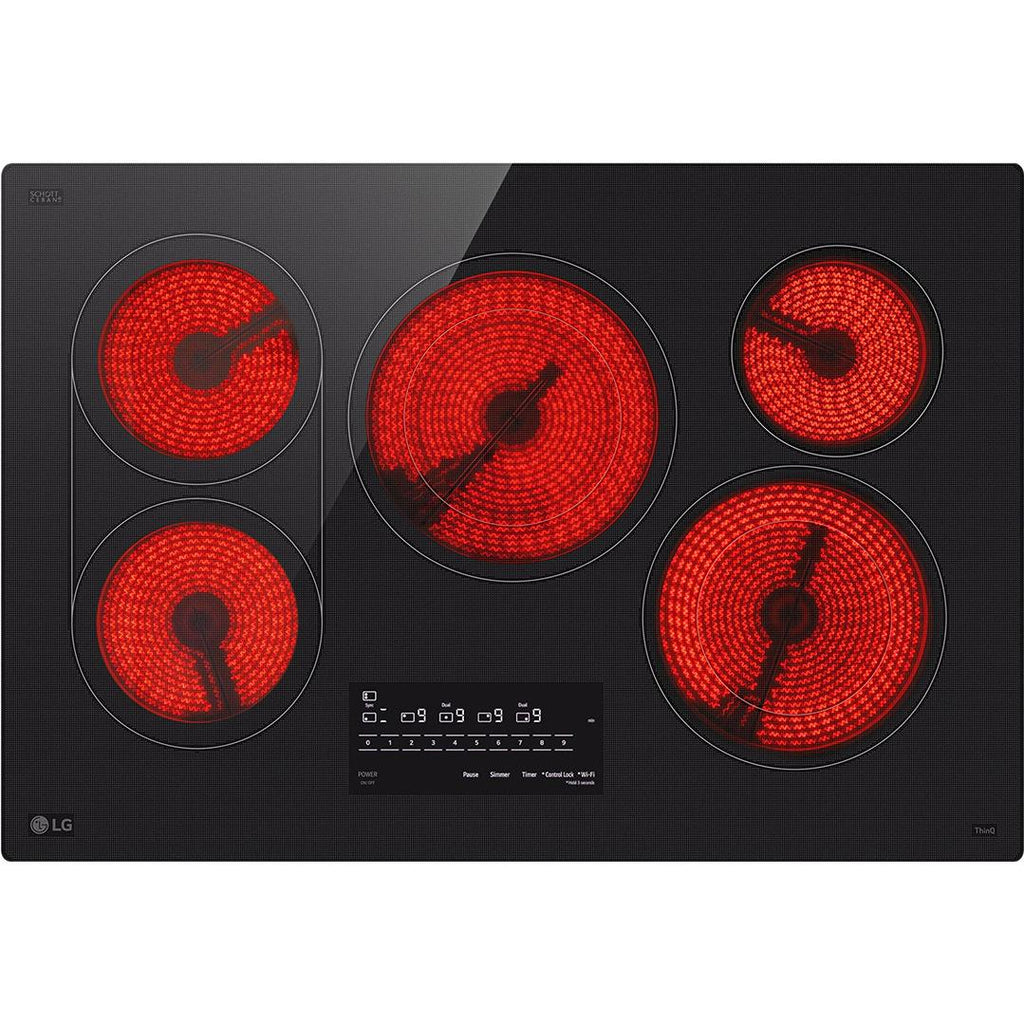

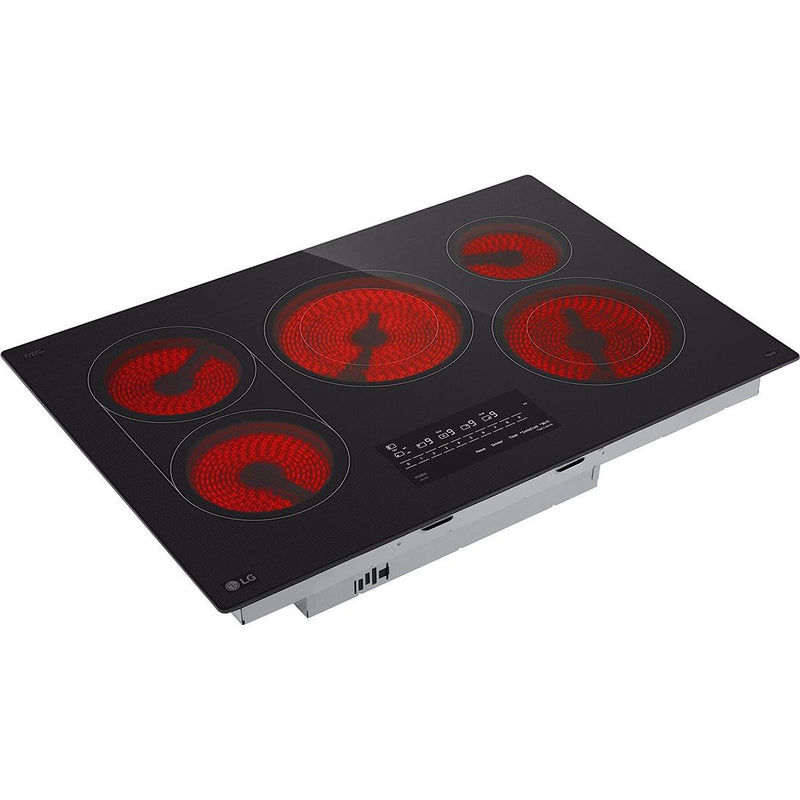

FLEXIBLE ELEMENTS FOR QUICK BOILS AND TRUE SIMMERS
With 3,200 watts of power, our UltraHeat™ element is powerful enough to rapidly boil water and flexible enough to turn down to a true simmer. Plus, thanks to our 2-in-1, dual element design, you can conveniently adjust the size of the element to accommodate 6-inch and 9-inch cookware.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Radiant Heater - Center Rear: 1400/3200 W
• Radiant Heater - Left Front: 1500 W
• Radiant Heater - Left Rear: 1500 W
• Radiant Heater - Right Front: 1000/200 W
• Radiant Heater - Right Rear: 1200 W
• Radiant Heater - Left Front: 1500 W
• Radiant Heater - Left Rear: 1500 W
• Radiant Heater - Right Front: 1000/200 W
• Radiant Heater - Right Rear: 1200 W
Burner/Element Size
• Radiant Heater - Center Rear: 6 5/8" /9 15/16"
• Radiant Heater - Left Front: 7 5/8"
• Radiant Heater - Left Rear: 7 5/8"
• Radiant Heater - Right Front: 5 15/16"/9 3/16"
• Radiant Heater - Right Rear: 6 7/16"
• Radiant Heater - Left Front: 7 5/8"
• Radiant Heater - Left Rear: 7 5/8"
• Radiant Heater - Right Front: 5 15/16"/9 3/16"
• Radiant Heater - Right Rear: 6 7/16"
Elements
Smoothtop
Surface Features
Ceramic Glass
Features
Technologies
• ThinQ® Technology
• SmoothTouch™
• UltraHeat™ 3.2kW Element
• Wi-Fi
• SmoothTouch™
• UltraHeat™ 3.2kW Element
• Wi-Fi
Wi-Fi
Yes
Control Lock
Yes
Digital Display
Yes
Additional Information
• Control Display: LED
• Cooktop Control Type: Glass Touch
• Pause
• Simmer
• Kitchen Timer
• EasyClean Cooktop
• Cooktop Control Type: Glass Touch
• Pause
• Simmer
• Kitchen Timer
• EasyClean Cooktop
Electrical Information
Information
• Required Power Supply (Volt/Hz): 208/240V / 60Hz
• Amp Rating at 208V (Amp): 34.7
• Amp Rating at 240V (Amp): 40.0
• Watt Rating at 208V (W): 7200
• Watt Rating at 240V (W): 9600
• Amp Rating at 208V (Amp): 34.7
• Amp Rating at 240V (Amp): 40.0
• Watt Rating at 208V (W): 7200
• Watt Rating at 240V (W): 9600
Certifications and Approvals
ADA Compliant
Yes
Information
Energy Star
Accessories
Included
• Cooktop Cream / Cleaner: 1
• Scouring Pad: 1
• Scouring Pad: 1
Dimensions
Class Width
30"
Width
30.68 inch(es) / 77.94 cm
Height
4.12 inch(es) / 10.47 cm
Depth
21.06 inch(es) / 53.49 cm
Weight
36.02 lb(s) / 16.34 kg
Additional Dimensions
Cut-out Dimensions Min (W x H x D)(inch) Standard: 28 1/2 x 5 7/8 x 19 5/8
Shipping Dimensions
Width
33.87 inch(es) / 86.04 cm
Height
5.37 inch(es) / 13.65 cm
Depth
24.25 inch(es) / 61.6 cm
Weight
41.73 lb(s) / 18.93 kg
