Features
EVEN-HEAT™ ZONE
Adds versatility to cook with large pans, like griddles, grill pans and braising pans, or two pans at two different temperatures. Unlike traditional round bridge elements with heating gaps, the rectangular zone heats evenly edge-to-edge, so the crepe in the back cooks just as beautifully as the one in the center.
TEMP COOK™ INDUCTION TECHNOLOGY
Lets you set an exact temperature from 120°F to 400°F for precise control beyond standard high, medium and low settings. Dual sensors in the cooktop help keep your pan from overheating, so you can take on ambitious recipes with delicious results, batch after batch.
"TEMP COOK™ SMART PRESETS"
set and hold the ideal temperature for popular cooking methods and alert when to add ingredients, so you can perfectly sear salmon, gently simmer sauces and quickly boil water. Use the KitchenAid™ App to unlock specialized options like stir fry, melt, chicken cutlets and more.* *Wi-Fi & App required. Features subject to change. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada).
WIPECLEAN™ COATING
Skip scraping & intense scrubbing of baked-on foods with WIpeClean™ Coating, the easiest-to-clean induction cooktop coating.* Simply wet with water, wait, and wipe away. *When compared with cooktops with same heating technology with similar wattages.
VOICE CONTROL.
Lets you control the cooktop with your Google Assistant, so you can stay hands-on while prepping the rest of your meal or entertaining. Simple voice commands let you set cooking modes for each zone and adjust the heat as needed. *Wi-Fi & App required. Features subject to change. Google Assistant capabilities available globally. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada).

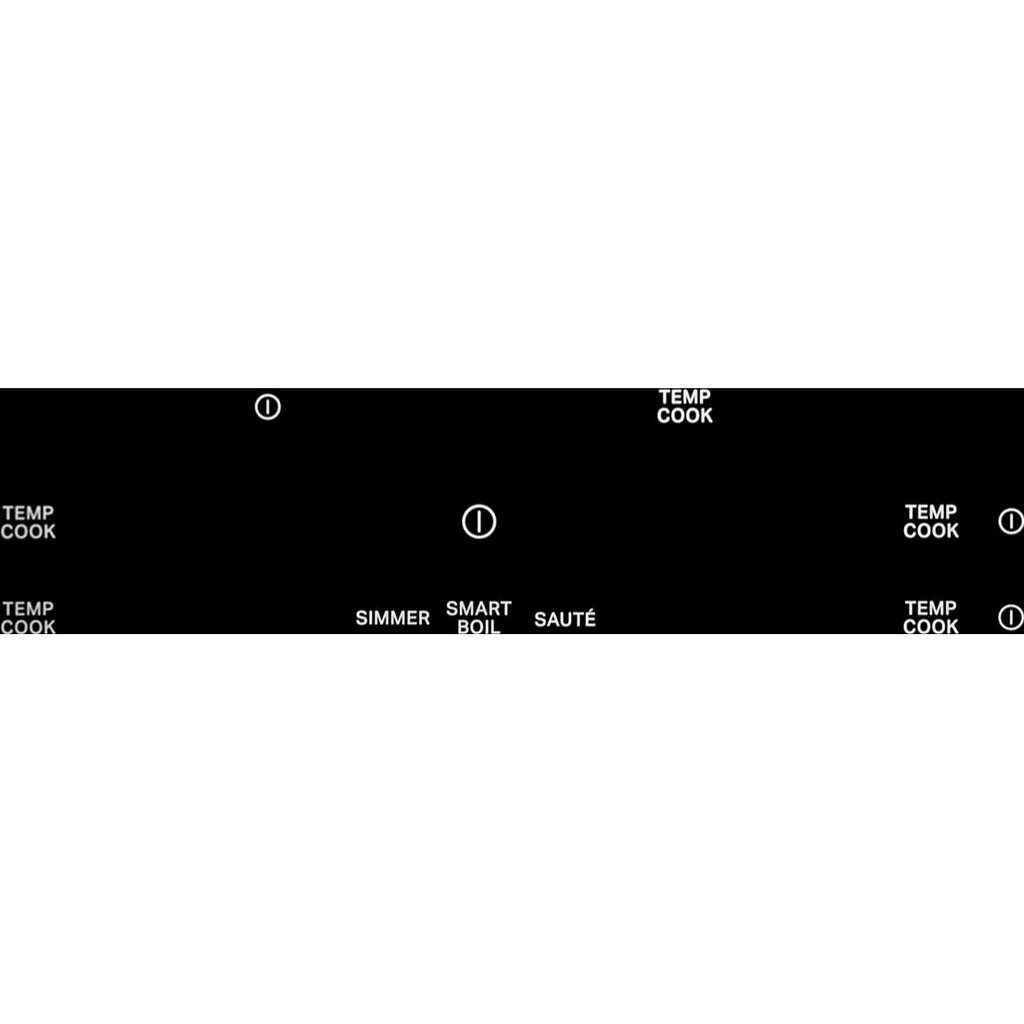

BACKLIT TOUCH CONTROLS.
Illuminate when in use and fade unobtrusively into the cooktop’s sleek black glass when turned off. Individual controls for each cooking zone provide quick access to Temp Cook™ Smart Presets and 18 manual power levels.
FRAMELESS DEISGN
Allows flush installation for a seamless look or standard installation to fit an existing cooktop cutout.
WORKS WITH MOST HIGH-QUALITY COOKWARE
Such as multi-ply stainless steel, enamelled steel or cast iron. Aluminum and copper cookware will not work unless it has a base made of iron or steel. Look for pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.
POWER BOOST FUNCTION
Reaches a boil over 2.5x faster than our electric cooktops* by heating the selected cooking zone above the maximum power level for up to 10 minutes.
GUIDED RECIPES
in the KitchenAid™ App send step-by-step instructions to your cooktop, perfectly preheating your pan while you prep ingredients, then automating cook times and temperature changes,* so you can expand your skills and explore new techniques with confidence. *Wi-Fi & App required. Features subject to change. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada).
PAN SIZE DETECTION
Recognizes the size and placement of cookware to generate heat directly within the pan. Display will alert you if you turn the cooktop on without a pan on the selected element or if your pan is not compatible with induction cooking.

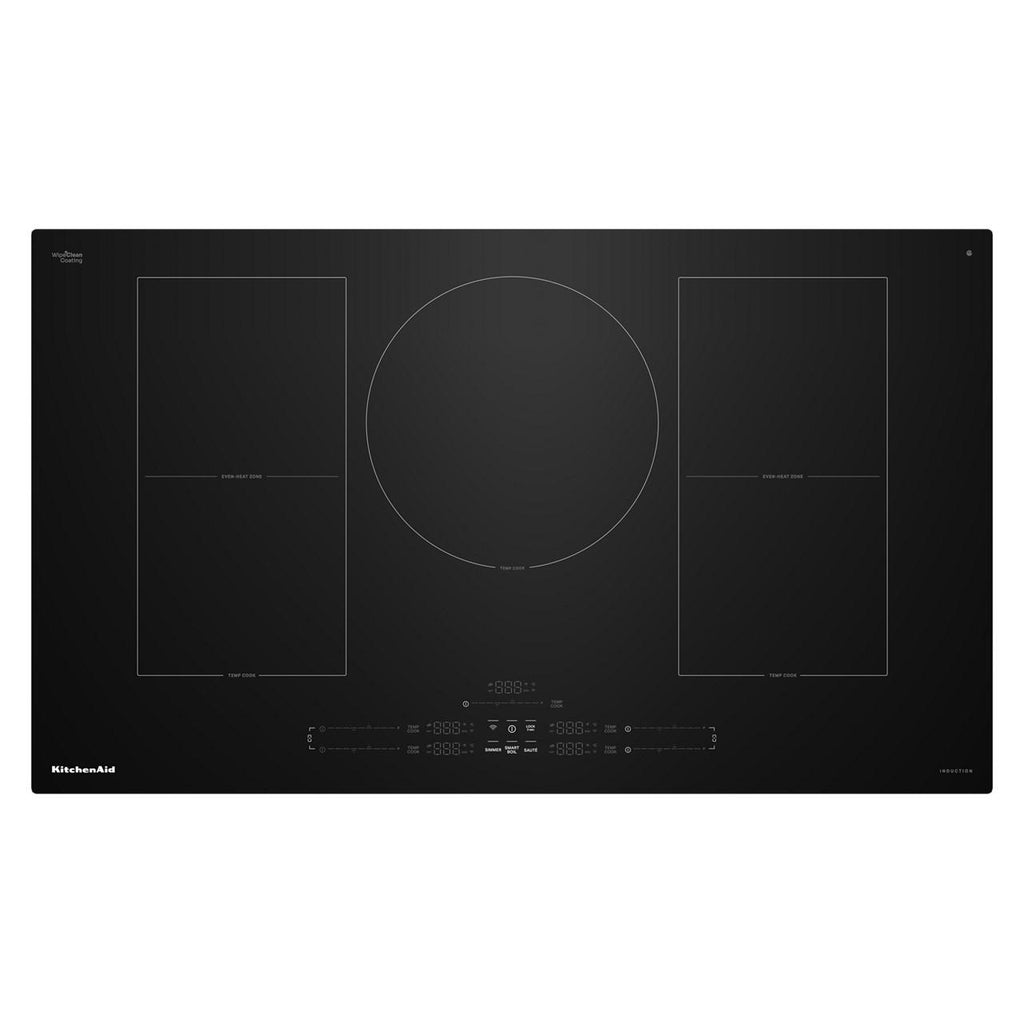

FIVE COOKING ZONES
Let you cook with up to five pans at once, empowering a variety of cooking adventures. Three round elements in 10", 7" and 6" sizes fit stock pots, saucepans and skillets. The Even-Heat™ Zone can be used as one large element or two separate elements, adding versatility for griddles or two pans at once.
Specifications
General
Color
Black
Manufacturer Color
Black
Fuel Type
Electric Induction
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Center Element Power: 2600/370 Watts (Boost)
• Right Front Element Power: 2500W/1200W Watts
• Right Rear Element Power: 2500/3700 Watts (Boost)
• Left Front Element Power: 2500/3700 Watts (Boost)
• Left Rear Element Power: 2500/3700 Watts (Boost)
• Right Front Element Power: 2500W/1200W Watts
• Right Rear Element Power: 2500/3700 Watts (Boost)
• Left Front Element Power: 2500/3700 Watts (Boost)
• Left Rear Element Power: 2500/3700 Watts (Boost)
Burner/Element Size
• Right Front Element Size: 7 1/2" Bridge
• Right Rear Element Size: 7 1/2" Bridge
• Left Front Element Size: 7 1/2" Bridge
• Left Rear Element Size: 7 1/2" Bridge
• Right Rear Element Size: 7 1/2" Bridge
• Left Front Element Size: 7 1/2" Bridge
• Left Rear Element Size: 7 1/2" Bridge
Elements
Smoothtop
Features
Technologies
• Induction Technology
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
• Connectivity: App; Bluetooth; Remote Access; Voice Controlled; WiFi
Wi-Fi
Yes
Control Lock
Yes
Digital Display
Yes
Additional Information
• Heating Element On Indicator Light
• Hot Surface Indicator Light
• Automatic Pan Detection
• Automatic Pan Size Adjustment
• Digital Display
• Installs Over Built In Oven
• Power Boost
• True Flush Installation
• Hot Surface Indicator Light
• Automatic Pan Detection
• Automatic Pan Size Adjustment
• Digital Display
• Installs Over Built In Oven
• Power Boost
• True Flush Installation
Electrical Information
Information
• 208 V
• 50 Hz
• 50 A
• 50 Hz
• 50 A
Certifications and Approvals
Information
UL, Energy Star® Certified
Accessories
Optional
Griddle

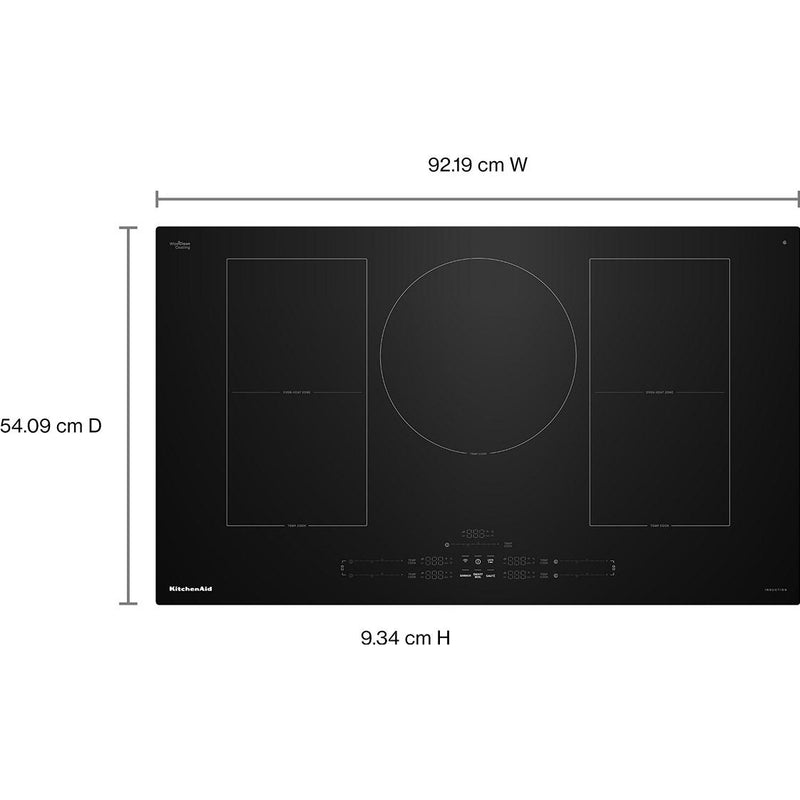

Dimensions
Class Width
36"
Width
36.3 inch(es) / 92.2 cm
Height
3.68 inch(es) / 9.34 cm
Depth
21.3 inch(es) / 54.09 cm
Weight
55.69 lb(s) / 25.26 kg
Additional Dimensions
• Cutout Depth: 20.43"
• Cutout Width: 33.07"
• Cutout Height: 3.94"
• Cutout Width: 33.07"
• Cutout Height: 3.94"
Shipping Dimensions
Width
40.24 inch(es) / 102.21 cm
Height
8.5 inch(es) / 21.59 cm
Depth
25.5 inch(es) / 64.77 cm
Warranty
Warranty
1 Year
UPC
UPC#
883049705569
